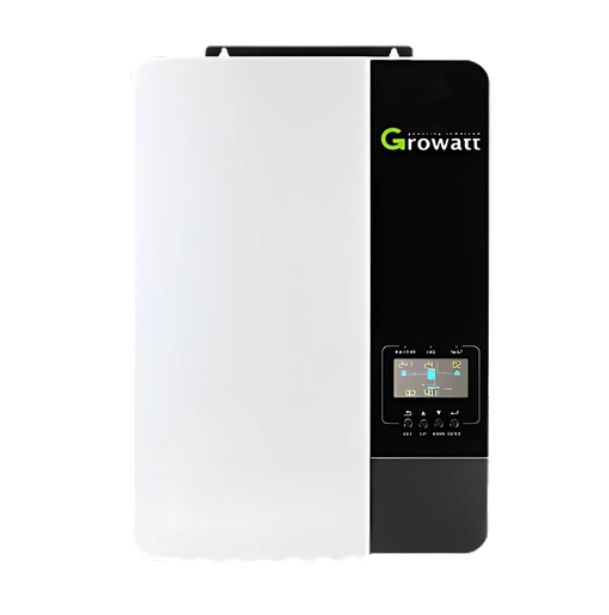

Growatt 5kVA 48V

Description

The Growatt SPF 5000 ES is a highly popular, multifunctional hybrid inverter designed for off-grid backup and self-consumption. It is widely used in the Kenyan market due to its versatility, specifically its ability to operate with or without a battery bank.

Core Performance

• Power Output: Delivers a steady 5000W (5kVA) of pure sine wave power, making it capable of running standard household loads, including refrigerators, TVs, and small water pumps.

• Surge Capacity: Features a 10,000VA surge rating, allowing it to handle the initial high-current “inrush” from motor-driven appliances.

• Efficiency: Boasts a peak efficiency of 93%, ensuring minimal energy loss during the conversion from DC to AC power.

Solar & Charging Specifications

• Integrated MPPT: Includes a powerful 100A MPPT charge controller that supports a solar array of up to 6000W.

• High PV Voltage: Supports a maximum PV open-circuit voltage of 450VDC, which allows for longer series strings of solar panels, simplifying the installation and reducing wiring costs.

• Flexible Charging: Features an 80A AC charger for rapid battery replenishment from the grid or a generator during cloudy periods.

Key Features & Scalability

• Battery Flexibility: Compatible with both Lead-Acid (Gel/Tubular) and Lithium-ion battery systems. It features a dedicated BMS communication port (CAN/RS485) for smart lithium batteries.

• Parallel Expansion: One of its strongest features is the ability to parallel up to 6 units, allowing you to scale a system up to 30kW or even configure it for three-phase operation

• Smart Monitoring: Supports optional WiFi or GPRS dongles, enabling you to monitor solar production and battery health remotely via a mobile app.
